Secure Database Connectivity with SSL

This document provides a comprehensive guide to configuring databases with SSL, including secret and delegate configurations, setting up for JDBC test connections, and pipeline permissions. It covers the necessary steps to set up and manage certificates for secure communication between database and other services.

1. Clone

Harness Database DevOps supports multiple source types for schema cloning and connecting to databases. SSL support varies based on the source type and integration method. The table below outlines SSL compatibility and configuration requirements for each supported source:

Functionality TypeSSL SupportTransport LayerCert ManagementNotes
Git (Schema Cloning)✅ YesHTTPSMounted certs (/etc/ssl/certs/ca-bundle.crt)More Info
Artifactory (Schema Cloning)❌ NoHTTPN/ASSL not supported for Artifactory-based schema cloning
Database Connections (JDBC)✅ YesJDBC over SSLRequires importing DB certs into truststoreSee Connector Setup Guide

2. Pre-requisites

Before proceeding, ensure you have the following components and versions in place:

  • CA Bundle - ca.crt (commonly contains ca.crt, used by both client and server)
    Important Note

    In most setups, the same CA signs both ends of the connection. If your environment uses distinct CAs for client and server, ensure both are trusted in the CA bundle.

  • Client Certificate - client.crt and client.key needs to be manually created by the user.
  • CI_MOUNT_VOLUMES and ADDITIONAL_CERTS_PATH delegate environment variables
    • We cannot use DESTINATION_CA_PATH since we need to mount different certificates to the build pod
  • Review supported configurations for your database type: Set up Connectors for Database DevOps
note

Minimum versions

  • db-devops-service - 1.32.x
  • drone-liquibase - plugins/drone-liquibase:1.1.0-4.27
  • drone-liquibase-mongo - plugins/drone-liquibase:1.1.0-4.27-mongo
  • drone-liquibase-spanner - plugins/drone-liquibase:1.1.0-4.27-spanner

3. Secret Configuration

Create a SSL Kubernetes secret with all certs:

kubectl create secret -n <namespace> generic dbops-ssl-secret \
--from-file=ca.bundle \
--from-file=client.crt \
--from-file=client.key
note

Ensure that the key names (ca.bundle, client.crt, client.key) match exactly with what your database client expects. For example, if the client expects ca.crt, rename the file accordingly before creating the secret.

kubectl create secret -n <namespace> generic dbops-ssl-secret \
--from-file=ca.crt=ca.bundle \
--from-file=client.crt \
--from-file=client.key

4. Delegate Configuration

Modify the delegate manifest file to include a volume mount.

  1. Add the following YAML under spec.template.spec.containers
volumeMounts:
- mountPath: /opt/harness-delegate/ca-bundle/
name: custom-certs
readOnly: true
  1. Add the following under spec.template.spec. Add the secret name with the value you used when you created the kubernetes secret.
securityContext:
fsGroup: 1001
volumes:
- name: custom-certs
secret:
secretName: dbops-ssl-secret
defaultMode: 400

dbops-ssl-secret is the name of the secret created in the previous step. Ensure that the secret name matches.

  1. Set Environment Variables
- name: ADDITIONAL_CERTS_PATH
value: "/opt/harness-delegate/ca-bundle/ca.bundle"
- name: CI_MOUNT_VOLUMES
value: "/opt/harness-delegate/ca-bundle/ca.bundle:/etc/ssl/certs/dbops/root_ca.crt,/opt/harness-delegate/ca-bundle/client.key:/etc/ssl/certs/dbops/client.key,/opt/harness-delegate/ca-bundle/client.crt:/etc/ssl/certs/dbops/client.crt"
note

When using CI_MOUNT_VOLUMES, the mounted file paths must be:

  • /etc/ssl/certs/dbops/root_ca.crt
  • /etc/ssl/certs/dbops/client.crt
  • /etc/ssl/certs/dbops/client.key Also, you must set the ADDITIONAL_CERTS_PATH environment variable when using CI_MOUNT_VOLUMES.

5. JDBC Test Connection

- name: INIT_SCRIPT
value: |-
openssl pkcs12 -export -in /opt/harness-delegate/ca-bundle/client.crt -inkey /opt/harness-delegate/ca-bundle/client.key -out client.p12 -name client_pkcs12 -password pass:changeit
keytool -importkeystore -destkeystore $JAVA_HOME/lib/security/jssecacerts -srckeystore client.p12 -srcstoretype PKCS12 -alias client_pkcs12 -storepass changeit -srcstorepass changeit -noprompt

The INIT_SCRIPT environment variable in the Harness Delegate is used to execute a startup script that generates client.p12 from client.crt and client.key and imports it into java keystore $JAVA_HOME/lib/security/jssecacerts

note
  • INIT_SCRIPT is required because the JDBC Test Connection runs inside the delegate container.
  • The delegate automatically imports ca.bundle into the default trust store ($JAVA_HOME/lib/security/cacerts).
  • Learn more: Override trust store for delegates

6. Pipeline Permissions

To import keys into the system trust store, the DB step must have access to the build pod. For example, If you need to run the step as root (e.g., for ApplySchema), set runAsUser: 0 in your step config:

# spec.template.spec.containers.image.securityContext
runAsUser: "0"

This ensures the step has the necessary permissions to update keystores.

Verfication

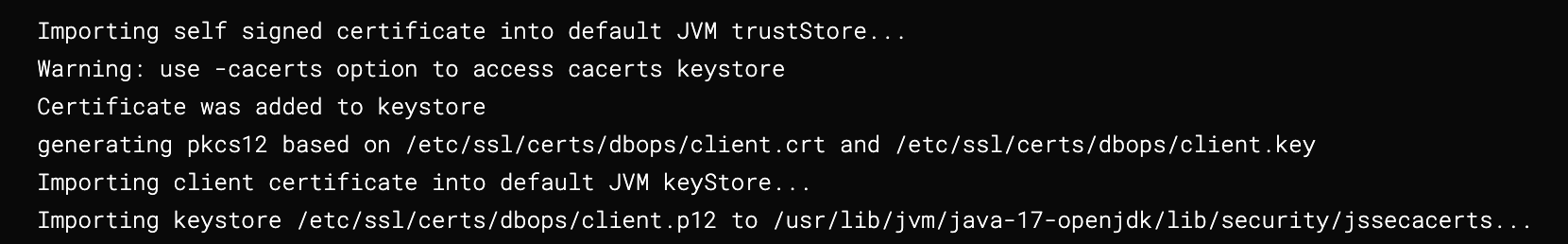

If the setup is successful, logs in the step will look like below: Verification Logs
